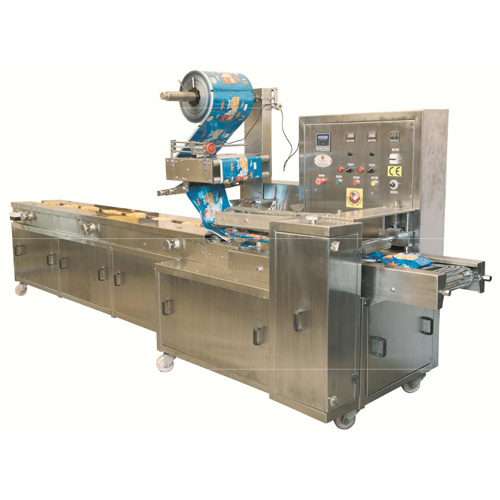

Our machine is used to pack various kinds of solid commodities such as Soaps, Candies, Ice Cream Cadies, Chocolates, Biscuits, Pastries, Cakes, Noodles , Electrical tap and Hardware products etc.ï
Salient Features:
- Dual frequency conversion control, bag length can be set and cut in one step, saving time and film.
- Interface features easy and quick setting and operation.
- Self failure diagnosis, clear failure display.
- High sensitivity photoelectric eye colour tracing. Numerical input of cuing sealing position for extra accuracy.
- Temperature independent PID more suitable for packaging different materials.
- Positioned stop function, without sticking knife or wasting film.
- Simple driving system, reliable working convenient maintenance.
- A control is realized through software easy or function ad using and technical upgrade.ï
ï
Technical Specifications.
- Film width : Max. 250mm (can be customize according to your requirements)
- Film width Range : 80 - 250mm
- Bag width : 25 -110mm
- Bag Length : Min. 65mm
- Product High : Max. 50mm
- Packing speed : 40 - 200 bags/min
- Power : 220V, 50/60HZ, Single Phase
- Weight : 400kg
- Dimension ( L*W*H) : 3920*670*1320mm
- Film roll diameter : Max. 320mm
